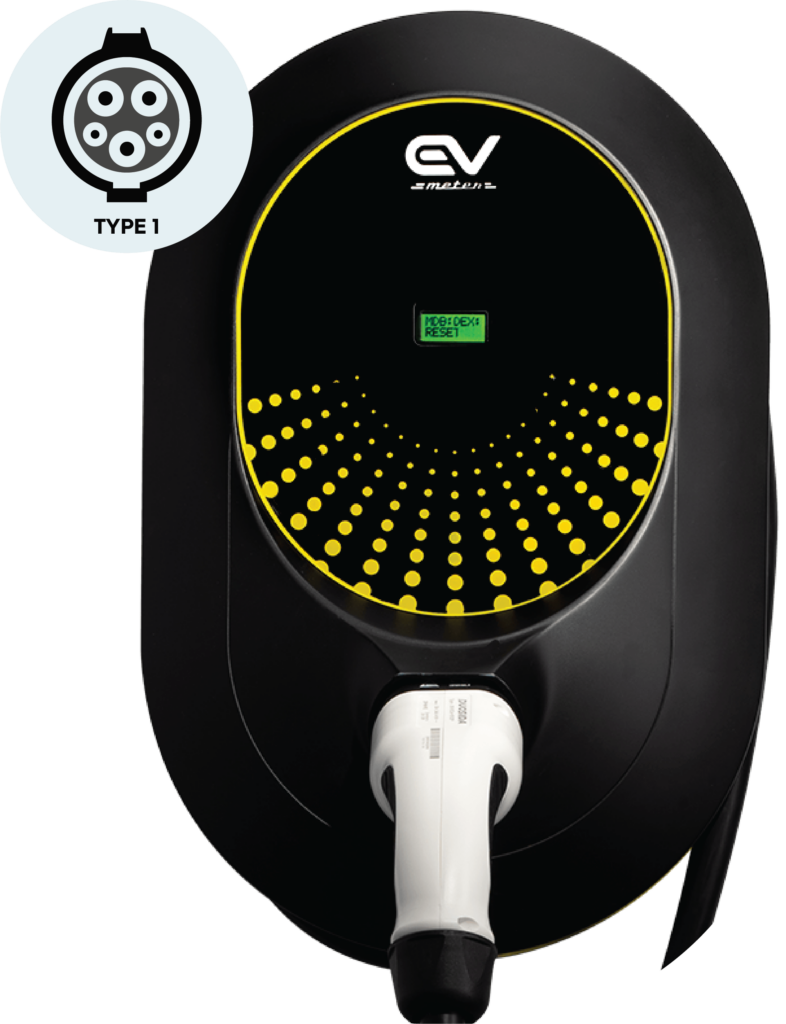

EV Meter

Smart

A smart and futureproof level-2 home charging station that is easily managed via a companion app and connects to any EV charging management platform

Dimensions: 480x300x180 mm

Max output power:6kg

Max output power: 22
Contact us
Learn more
  • Overview
  • Features
  • Home app
  • Technical specs
Overview

The EV Meter Smart is the ideal EV charging solution for private homes, multi-family residences and workplaces.

This universal charging station is equipped with a smart mobile app that allows you to manage your charger remotely, create your perfect charging schedule, track your energy consumption and more. The EV Meter Smart is not only smart – it’s also reliable and durable. Our home chargers are designed to withstand any environmental conditions and are easy to install in any location. The EV Meter Smart can easily connect to any EV charging operating system for remote management and monitoring.

Features

Weather Resistant

Approved for both indoor and outdoor installations

Connected

Manage your charger remotely via the free EV Meter home app

Universal

Compatible with all EVs and easily instaled in any electrical setting

Secure

Tested to the highest degree of electrical safety

3 Year Warranty

Reliable products backed by a 3 year warranty

Grid Agnostic

One charger that supports three phases and one phase

Intuitive

User-friendly LED lights

Sleek And Compact

Stylish design that takes up minimal space on your wall

Home app
Schedule charging to save time and money
View and control your charging from anywhere
Adjust your current levels or limit your charging
Track charging history and easily monitor energy consumption
Share the charger with authorized members
Technical specs

Type 1

  • AC Power Supply: L1 + L2/N + PE

  • AC Input Voltage: 110-240 VAC, +/-10%, 50-60Hz

  • AC Output Voltage: 110-240 VAC, +/-10%, 50-60Hz

  • Maximum Input / Output Current : 50A max

  • Maximum Input / Output Power: 12kW

  • Interface Protocol: OCPP 1.6 Supported

  • Available Connections: Type1 Plug, 16.4ft cable

  • Server Communication: 4G

  • App Communication: Wi-Fi, Bluetooth

  • Dimensions and Weight (WxHxD): Cable 450x300x180 mm, 8kg

  • Standards & Certifications: ROHS, REACH, FCC

  • Warranty: 3 years

Download PDF

Type 2

  • AC Power Supply: 3P + N + PE

  • AC Input Voltage: 380-400 VAC, +/-10%, 50-60Hz

  • AC Output Voltage: 380-400 VAC, +/-10%, 50-60Hz

  • Maximum Input / Output Current: 3x32A

  • Maximum Input / Output Power: 22kW

  • Interface Protocol: OCPP 1.6 Supported

  • Available Connections: Type 2 socket or 5m cable with plug

  • Server Communication: 4G

  • App Communication: Wi-Fi, Bluetooth

  • Dimensions and Weight (WxHxD): Cable 450x300x180 mm, 8kg

    Socket 480x300xs180 mm, 6kg

  • Standards & Certifications: ROHS, REACH, CE Compliant

  • Warranty: 3 years

Download PDF

FAQs

What does a level 2 charging station mean?

A level 2 charging station charges faster than a household outlet, offering AC charging at a variety of charging speeds. EV Meter is a level 2 commercial charger, charging up to 22 kW.

Does the EV Meter Smart charge all types of electric vehicles?

Yes, the EV Meter Smart is a universal level 2 charging station that is compatible with any plug-in electric vehicle.

Are EV Meter chargers suitable for outdoor use? Can vehicles be charged when it’s raining or snowing?

EV Meter chargers can be installed both outdoors and indoors either on a pedestal or wall-mounted. With IP55 certification, these chargers are weather-resistant, waterproof and durable.

What safety protection do EV Meter chargers have?

EV Meter is committed to ensuring the highest safety levels and features over-power, over-temperature and stuck relay protections as well as temperature warning alerts.

Can the EV Meter Smart get hosted by an OCPP charging management platform?

The EV Meter Smart can easily connect to EV Meter’s charging management platform Hive or any other third-party platform.
