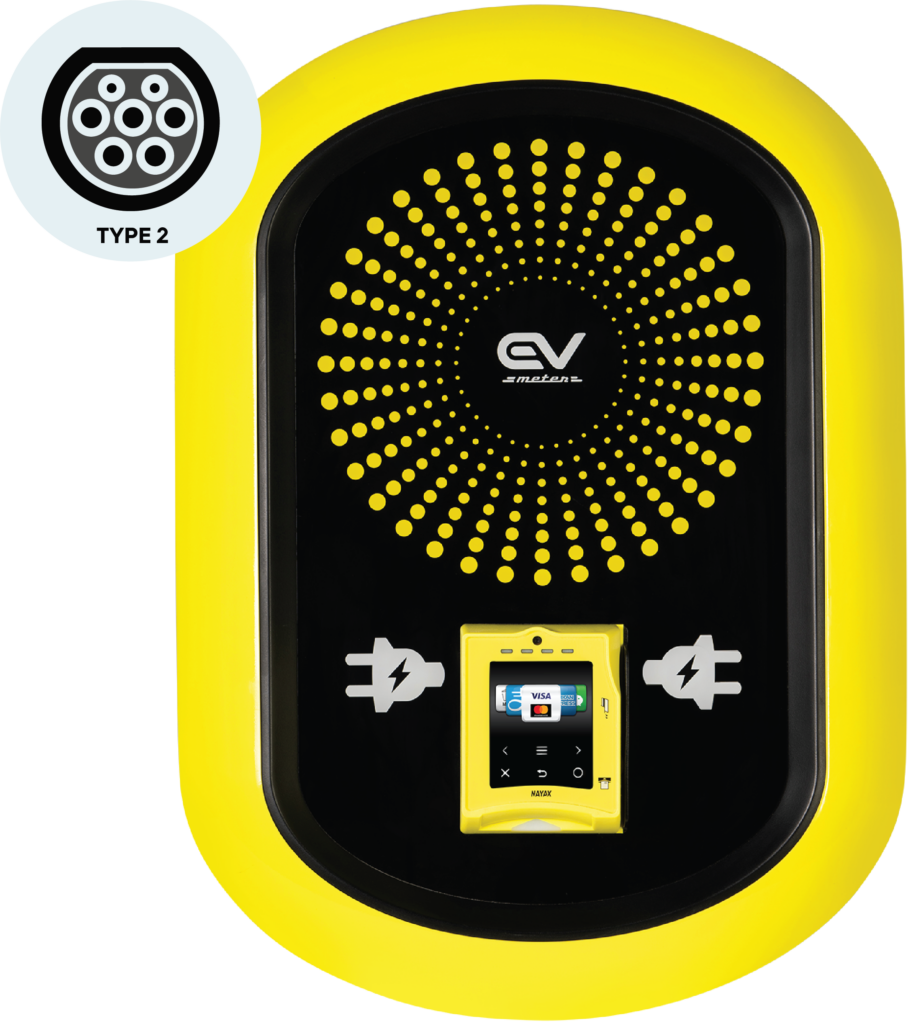

EV Meter

Pay²

A universal level-2 charging with two ports and a built payment terminal that accepts every major payment method

Dimensions: 365x520x266 mm

Max output power:15kg

Max output power:
Contact us
Learn more
  • Overview
  • Features
  • Home app
  • Technical specs
Overview

The EV Meter Pay² is the ideal EV charging solution for commercial or public locations including shopping centers, hotels, workplaces, parking facilities and municipalities.

This universal charging station is equipped with a built-in card reader that accepts every major payment method including debit and credit cards, digital wallets, QR codes, prepaid, NFC and more. By providing EV Drivers with a quick and convenient way to pay, you won’t miss out on a single sale and your customers will enjoy a seamless charging experience. As a payment facilitator, EV Meter process all payments and ensures only pre-authorized transactions so that you could focus on growing your business.

Features

Open Payment Suite

Acceot any type of payment method

Connected

OCPP 1.6 Supported

Universal

Compatible with all EVs and easily instaled in any electrical setting

Secure

Tested to the highest degree of electrical safety

3 Year Warranty

Durable products backed by a 3 year warranty

Multi-Language

Operates in 30+ languages

Home app
Technical specs

Type 1

  • AC Power Supply: 2X(L1 + L2/N + PE)

  • AC Input Voltage: 110-240 VAC +/- 10%, 50-60Hz

  • AC Output Voltage: 110-240 VAC +/- 10%, 50-60Hz

  • Maximum Input / Output Current: 50Amax

  • Maximum Input / Output Power: 2X12kW

  • Number of Plugs: Two

  • Interface Protocol: OCPP 1.6 Supported

  • Server Communication: Ethernet, 4G

  • Debit & Credit Cards: Swipe, contact, contactless, EMV chip cards

  • Mobile & NFC Payments: Google Pay, Apple Pay, Swish and more

  • Preparid Cards & Closed Environments / Static and Dynamic QR Codes: Alipay, WeChat Pay and others

  • Safety Protections: Electronic RCD 30mA AC, Electronic 6mA DC Fault current detection

  • Power Limit Control: Mode 3 PWM control according to UL-2594

  • Type 1 Socket Protection: J-1772 Type 1 connector

  • Available Connections: Type1 Plug, 16.4ft cable

  • IP Rating: IP55

  • Enclosure Protection Rating: IK10

  • Payment Terminal Impact Protection: IK8

  • Enclosure Material: PC + UV

  • Operating Temperature: (-25°C) to (+55°C)

  • Ambient Temperature Storage: (-30°C) to (+70°C)

  • Status LEDs: Yes

  • Light Beacon: RGB color indicator

  • Built-in Energy Meter: Yes

  • Weight & Dimensions (WxHxD): 365x520x266 mm, 15kg

  • Standards & Certifications: ROHS, REACH

Download PDF

Type 2

  • AC Power Supply: 3P + N + PE

  • AC Input Voltage: 380-400 VAC, +/-10%, 50-60Hz

  • AC Output Voltage: 380-400 VAC, +/-10%, 50-60Hz

  • Maximum Input / Output Current: 3x32A*2

  • Maximum Input / Output Power: 2x22kW

  • Interface Protocol: OCPP 1.6 Supported

  • Available Connections: Type 2 socket or 5m cable with plug

  • Server Communication: Ethernet, 4G

  • Dimensions and Weight (WxHxD): Socket 365x520xs266 mm, 15kg

  • Standards & Certifications: ROHS, REACH, CE Compliant

  • Warranty: 3 years

Download PDF

FAQs

What payment methods does the EV Meter Pay² accept?

The EV Meter Pay² is integrated with Nayax’s robust payment solution that accepts swipe, contact and contactless credit cards, QR codes and digital wallets. This commercial charging solution provides EV drivers with maximum convenience when it comes time to pay. Additionally, EV Meter chargers also accept prepaid cards for closed-loop environments.

Does the EV Meter Pay² charge all types of electric vehicles?

Yes, the EV Meter Pay² is a universal level 2 charging station that is compatible with any plug-in electric vehicle.

Which languages does the EV Meter Pay² operate in?

The built-in payment terminal on the EV Meter Pay² operates in 30+ languages, including English, Spanish, French, Japanese, Dutch, German, Polish, Indonesian, Russian, Thai, Italian, Swedish Turkish, Czech and Hungarian.

Are EV Meter chargers suitable for outdoor use? Can vehicles be charged when it’s raining or snowing?

EV Meter chargers can be installed both outdoors and indoors either on a pedestal or wall-mounted. With IP55 certification, these chargers are weather-resistant, waterproof and durable.

What does a level 2 charging station mean

A level 2 charging station charges faster than a household outlet, offering AC charging at a variety of charging speeds. EV Meter is a level 2 commercial charger, charging up to 22 kW.
